Facilitates the entry of material from the left end and the collection from the right end, ensuring the material remains flat and wrinkle-free during the wiring process.
1. Gantry structure: facilitates the entry of material from the left end and the collection from the right end, ensuring the material remains flat and wrinkle-free during the wiring process.
2. Maximum speed 750 r/min (stitch length 0.5-4.5mm); speed may vary depending on the resistance wire, fabric, and complexity of the pattern.
3. Maximum thickness capability 5mm; needle stroke adjustable within 0.8mm–5mm.

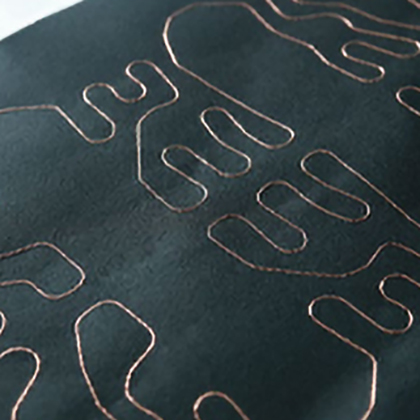

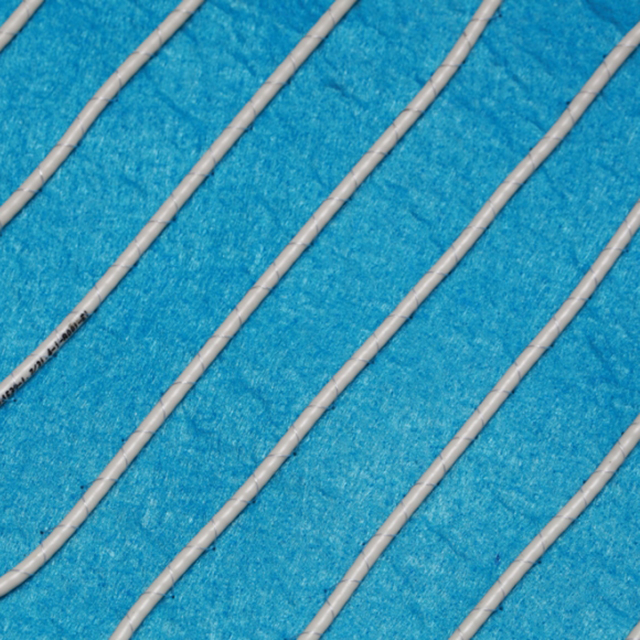

4. Minimum bending radius of the electric heating wire is greater than or equal to 3mm; the bending radius varies according to the thickness and material of the resistance wire.
5. Automatic wire feeding device [resistance wire or other wire materials]: large material spool device to reduce wire-up time during production.
6. Automatic wire jamming alarm and machine stop; automatic detection and alarm for wire tying with machine stop.
7. Pneumatic frame can be manually opened and has a power-off pressure-holding function.
8. Resistance wire cutting device has collision protection (prevents the cutter from hitting the wiring frame if it does not return to position).
