Technical Features
1. One machine can perform both punching and sewing processes, allowing flexible design.
2. Automatic tensioning device for the top thread, making stitches tighter and more even.
3. Uses an imported rotary shuttle specifically for leather sewing, with double the durability.
4. Can automatically change thread color during punching to achieve a gradient hole effect.
5. Equipped with an industrial-grade vacuum cleaner to effectively remove leather dust.
6. Patented aluminum-magnesium alloy integrated fixture for punching and sewing.
Applications

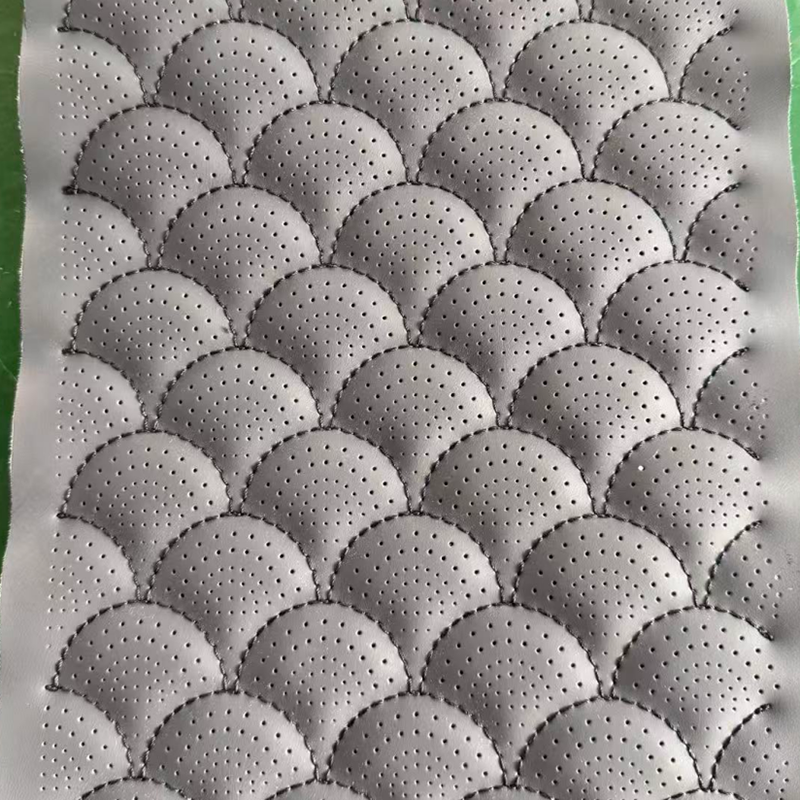

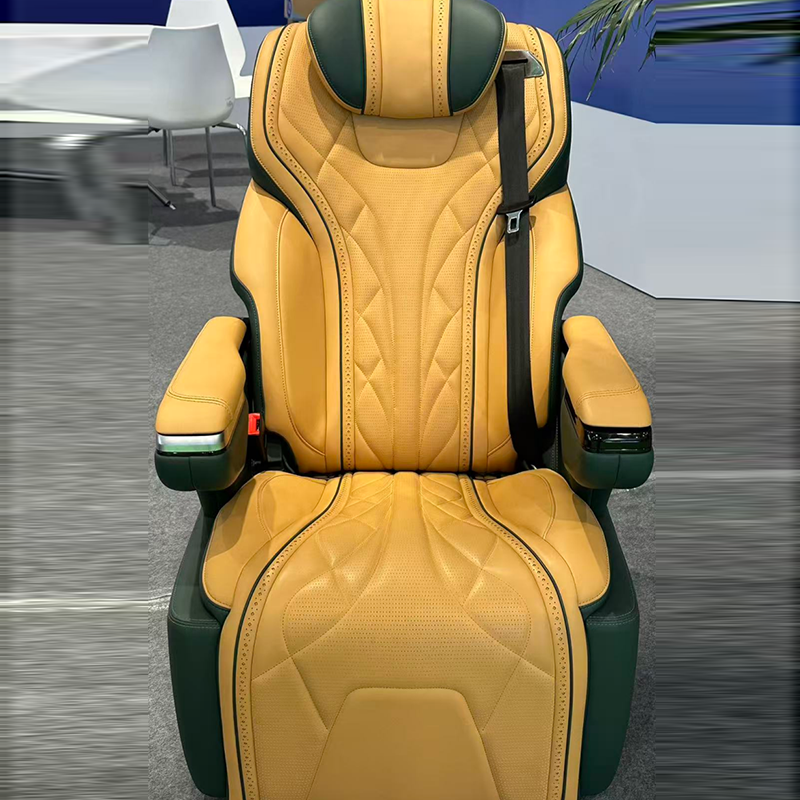

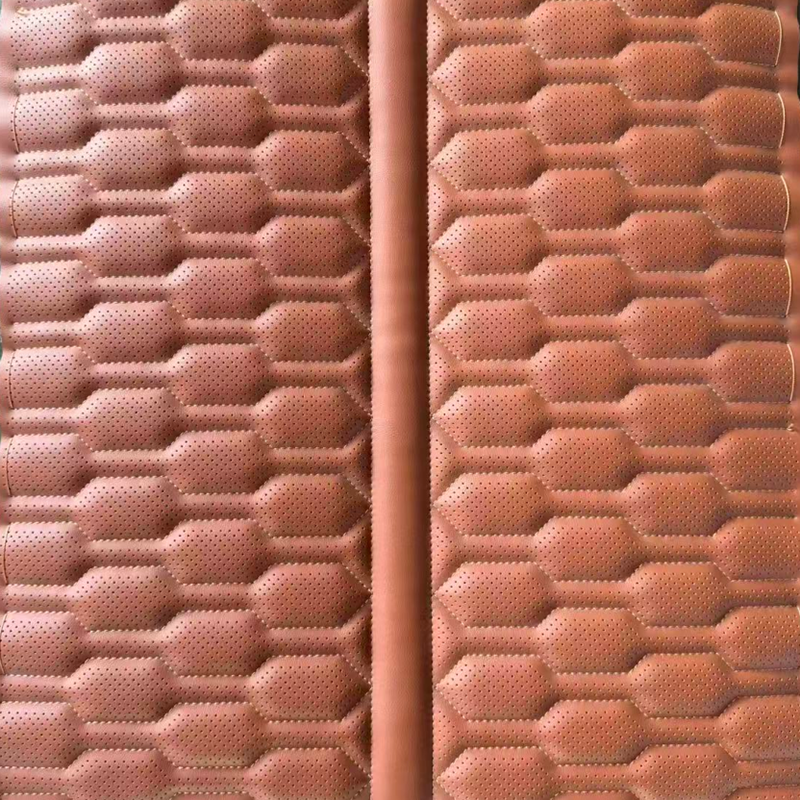

Suitable for customized processing of leather products, such as car seats, airplane seats, furniture, floor mats, handbags, footwear, and other products.
Main Parameters and Configuration
| Main Parameters | Main Configuration | ||
| Power Supply | Three-phase 380v/50Hz | Display | 15-inch touchscreen |
| Punching Speed | 1000 rpm | Drive Method | Full servo motor |
| Sewing Speed | 1200 rpm | Hrea Looping | Motor-driven independent looping |
| Stitch Length | 0.1–12.7mm | Thread Cutting | Motor thread cutter |
| Round Punch (mm) | 0.8/1.0/1.2/1.5/2.0/2.5 | Locking Method | Motor lock |
| Working Area (mm) | 900x600/1200x800 | - | |
