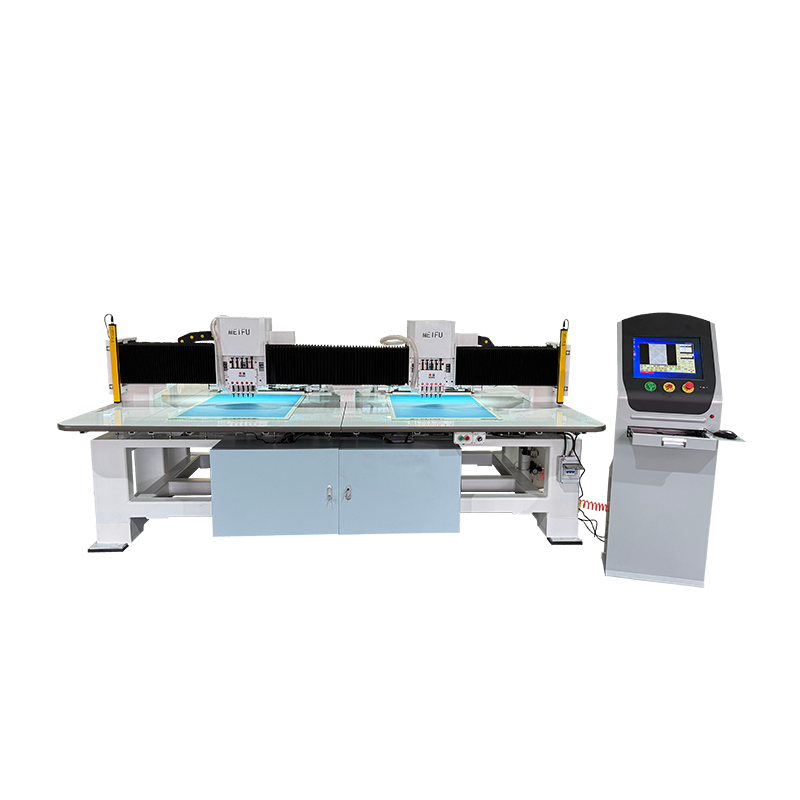

1. Punching speeds of up to 2000 holes/min are possible 2. Single-head and double-head models are available 3. Multiple heads work at the same time, doubling efficiency

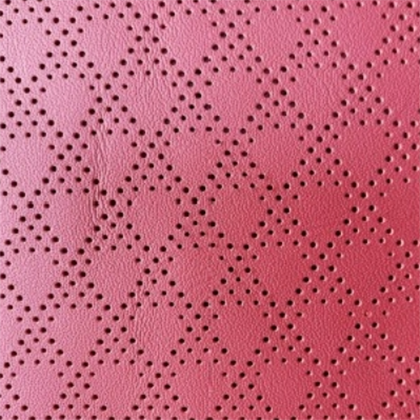

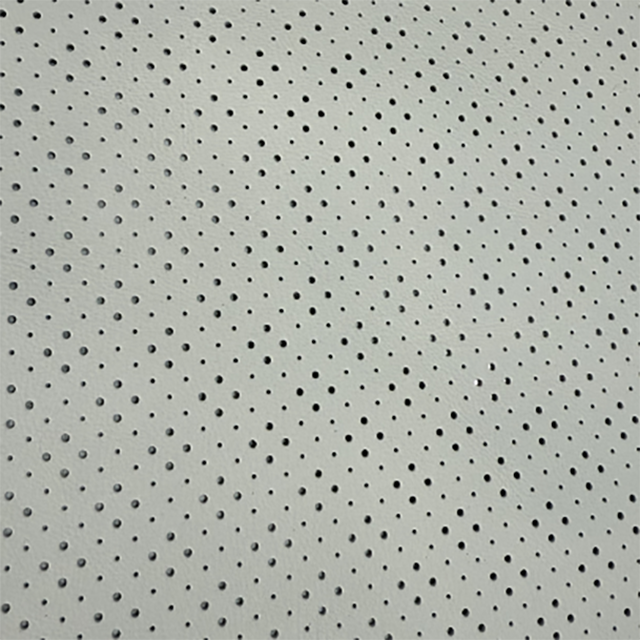

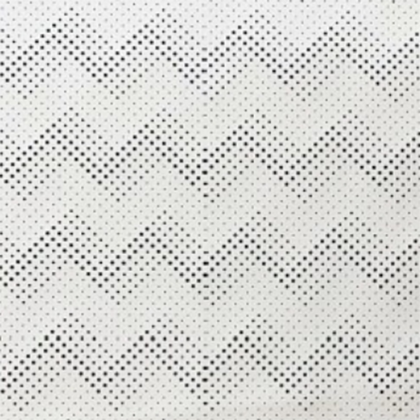

It is suitable for punching and processing of various types and thicknesses of genuine leather and microfiber leather such as car seats, airline seats, shoe uppers, bags, furniture, etc.
Features
01. Meifu independently developed APP control, Windows system, convenient for customers to install and use
02. XY adopts the lead screw direct drive mode, with high punching accuracy and fast punching speed.
03. The thickened punching tool holder is adopted, and the punching strength is stronger.
04. Each punch box can be equipped with 5 specifications of punching knives, and the specifications and shapes of punching knives can be customized according to customer requirements
05. The maximum punching speed can reach 2000 holes/min.
06. Single-head and double-head models are optional, and multiple heads work at the same time, doubling the efficiency.
07. The industrial vacuum cleaner is adopted, the dust collection effect is good, and the vacuum cleaner can work continuously for 24 hours.
08. Backing plate tooling, low cost of tooling and easy operation.
09. Use the general software autoCAD, and use it directly without converting drawings.
10. Pneumatic clamp frame, convenient for quick replacement of backing plate, improve production efficiency
11. Optional 6 needle bars, needle bar rotation
Parameters
Pattern Reading
USB
Max. Speed (holes/minite/head)
2000
Material Fixing
Plate Mount
Pattern format
dxf
Air Pressure
0.6MPa
Max. Power
7.5kW
Control Panel
Windows11
Power Supply
1P - 220V/3P - 380V
Puncher Size
Standard round shape (0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0m)
Tianjin Meifurui Technology Co., Ltd. is a production and research and development technology company mainly focused on automation and intelligent research and production.
