Applications
Suitable for car seats, saddle pads, aviation seats, furniture, sports shoes, leather shoes, leather clothes, leather bags, etc.
Features

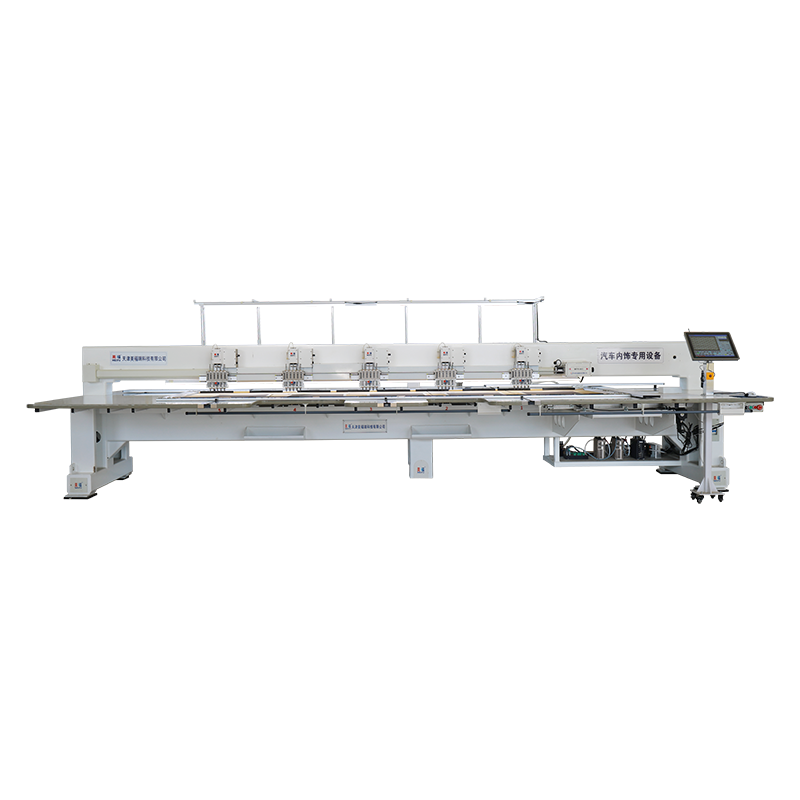

1. Five-station high-speed CNC hole punching machine, processing 5 pieces of leather at a time, fast speed and high efficiency
2. Input DXF format drawings, the drawings are easy to program, easy to operate, and quick to start
3. Controlled by three-axis full servo motor, the machine runs stably at high speed and has a long life
4. Automatic switching of five hole types, can process holes of different sizes (0.8-5 mm diameter holes)
5. High-power industrial vacuum cleaner and automatic vacuum suction are used to ensure efficient and clean processing environment.
Parameters
Power Supply One-way 220v or three-phase 380v/50Hz Display 10-inch or 15-inch LCD touch screen Punching speed 400 - 1000 rpm Drive mode Full servo motor Stitch length 0.1 - 12.7mm Frame structure Integrated clip frame Round Punching Cutter (mm) 0.8/1.0/1.2/1.5/2.0/2.5 Number of Punching Heads 5 Heads (Customizable) Working Area (mm) 900x600/1200x800 (Customizable) Rack Structure Bridge type heavy duty structure Machine model MFCE-P-1.5-900X600-B-DXF
