Applications

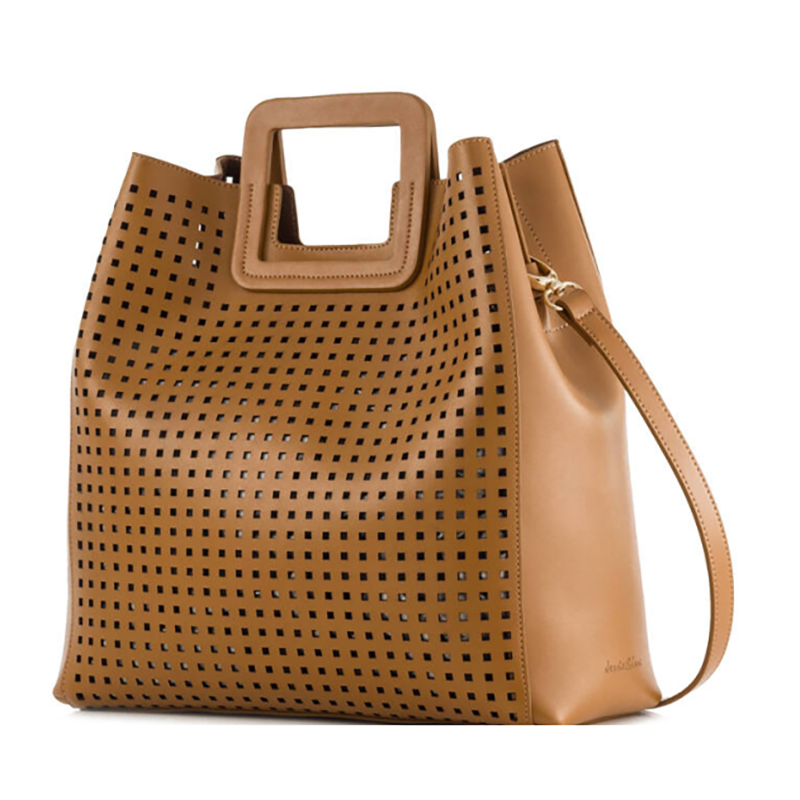

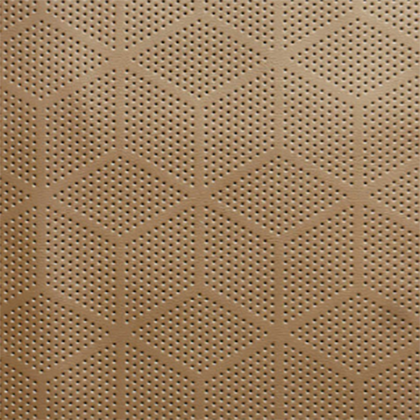

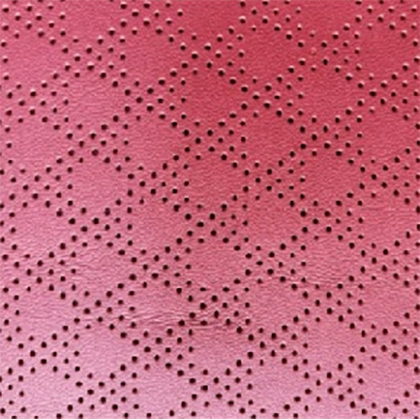

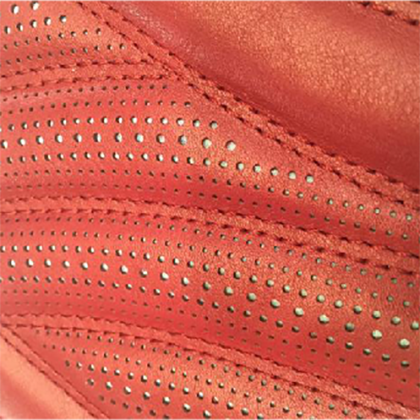

Suitable for punching various types and thicknesses of genuine leather and microfiber leather used in car seats, aircraft seats, shoe uppers, bags, furniture, and more.
Features
01. Meifu independently developed APP control, Windows system, convenient for customers to install and use.
02. Uses a punching machine dedicated head, the needle rod is hollow, and debris is directly sucked away through the needle rod to prevent debris from falling and scattering.
03. Each punch rod box can be equipped with 5 types of punching dies, and the specifications and shapes of the punching dies can be customized according to customer requirements.
04. The maximum punching speed can reach 1200holes/minute.
05. Optional single-head or double-head models, multiple heads can work simultaneously, doubling efficiency.
06. Uses an industrial vacuum cleaner with good suction effect, capable of continuous operation for 24 hours.
07. Pad-type tooling, low tooling cost, easy operation.
08. Uses common software AutoCAD, drawings can be used directly without conversion.
09. Pneumatic frame clamping, convenient for quick replacement of pads, improving production efficiency.
10. Optional 6 punch rods, punch rods can rotate. collection effect is good, and the vacuum cleaner can work continuously for 24 hours.
Parameters
| Pattern Reading | USB |
| Max. Speed (holes/minute/head) | 1200 |
| Material Fixing | Plate Mount |
| Pattern format | dxf |
| Air Pressure | 0.6MPa |
| Max. Power | 5.5kW |
| Control Panel | 15-inch LCD touch screen |
| Power Supply | 1P-220V/3P-380V |
| Puncher Size | Standard round shape (0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0m) |

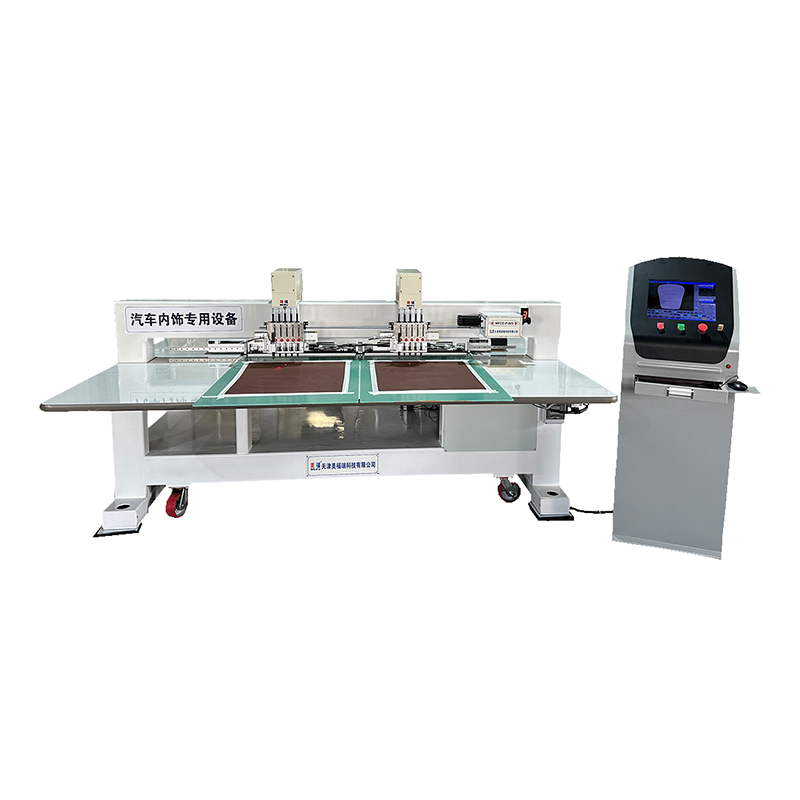

Models
Models | Head No. | Punch bar No. | Processing area. | Installation Area (L×W×H) |
MFRCE-P-1.5-900X600 | 1 | 5 | 900X600 | 1800mm×2000mm×1400mm |
MFRCE-P-2.5-600X900 | 2 | 5 | 600X900 | 2400mm×2000mm×1400mm |
MFRCE-P-1.5-1200x900 | 1 | 5 | 1200X900 | 2400mm×2000mm×1400mm |
MFRCE-P-2.5-1200X900 | 2 | 5 | 1200X900 | 3600mm×2000mm×1400mm |
