Applications
Suitable for medium-to-heavy materials such as various types of leather, including the stitching of automotive interiors (e.g., car seats, cushions, seat belts, airbags) as well as products like tents and furniture.
Features

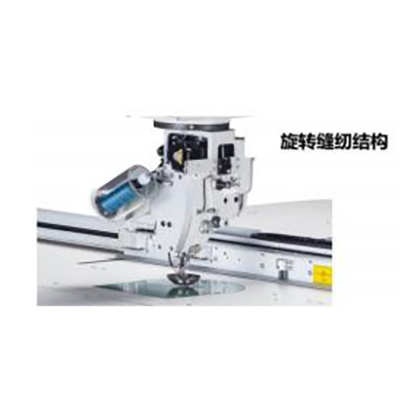

1. Extended arm-style sewing unit with lifting and 360。 intelligent rotation.
2. The machine head and rotating base support synchronized 360。rotation for sewing in any direction, ensuring precise and neat stitches.
3. Equipped with a 2x specialized leather sewing machine imported rotary hook.
4. The machine head features a micro-oil structure design, and the needle bar is treated with a special DLC ultra-wear-resistant surface coating.
5. Intelligent "M-system upper software" enables processing of any pattern and allows free editing of command outputs.
6. Power-off protection function: the system requires a restart after a power failure, ensuring safer operation.
Main Parameters and Configuration
Main Parameters | Main Configuration | ||
Power supply | Single phase 220V/50HZ | Display | Touch Screen |
Speed | 1500 rpm | Motor | Servo motors |
Thread length | 0.1—12.7mm | Trimming | Independent AC Motor |
Input | USB Drive | Drive | Ball Screw |
Sewing area | 1200x800mm | Sewing head | Rotating lifting head |
