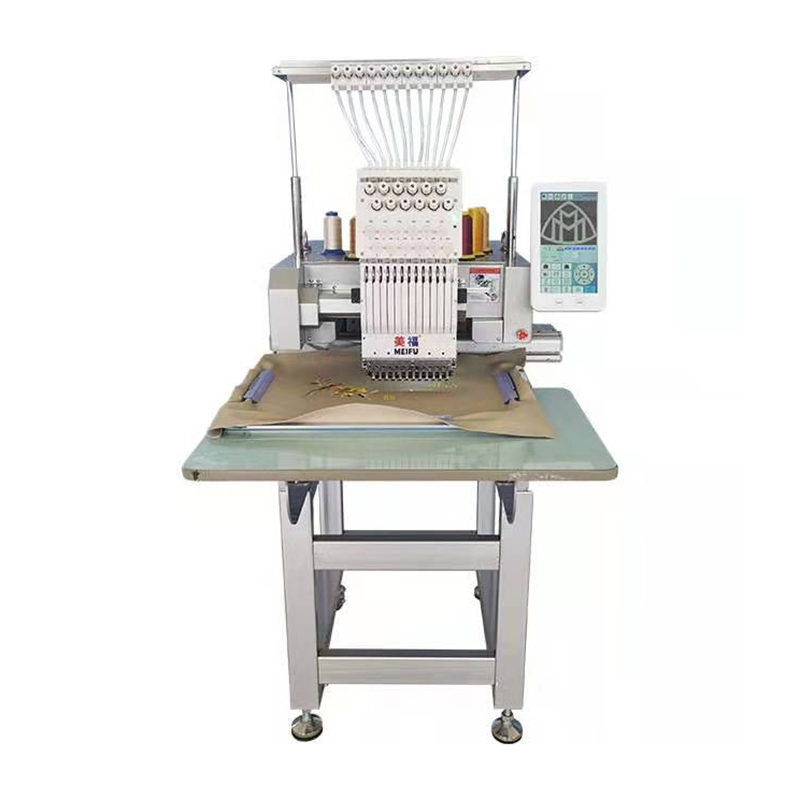

Introduction To Single-head Flat Embroidery Ready-to-wear Hat Embroidery Machine

Equipment features:

1. Input power supply: 220v/50Hz for a single item.

2. Machine size: 900mmx1000mmx1650mm (length x width x height), net weight: 180kg.

3. Working area: flat embroidery 400x500mm, ready-to-wear embroidery 350x350mm, hat embroidery 300x60mm.

4. Working speed: flat embroidery ≤ 1200RPM, garment embroidery ≤ 1000RPM, hat embroidery ≤ 900RPM.

5. The frame adopts gantry mechanism, which occupies a small area and is equipped with casters, which can easily handle the machine.

6. 7-inch touch operation screen, large memory, can store 20 million pins or 200 patterns, can rotate, scale, copy, delete, and edit patterns.

7. The spindle drive and embroidery frame drive are driven by closed-loop stepper motors, which has higher embroidery accuracy.

8. Wire break detection function, automatic wire cutting and automatic hooking.

9. USB input patterns or transfer patterns through computers.

10. Power failure protection function: when the power is suddenly cut off, the machine can automatically cut off the power supply in a paused state, and continue to embroider after turning on.

11. The needle step is 0.1-12.7mm, and the speed can be automatically increased or decreased according to the size of the needle step to adjust to the most reasonable working speed.

12. The machine is equipped with a special embroidery frame, which is convenient to switch between flat embroidery, hat embroidery and garment embroidery.

Core functional advantages

• Multi-scene applicability: By replacing the embroidery frame and fixtures, flat embroidery (such as fabric, handkerchief), garment embroidery (such as clothing logo, decorative pattern), hat embroidery (such as brim, hat body embroidery) and other processes can be completed, and one machine can be used for multiple purposes, reducing the cost of equipment investment.

• Ease of operation: The single-head design allows the equipment to occupy a small area (usually about 1.5-2 square meters), suitable for production environments with limited space. The user-friendly operation interface supports one-click start, parameter memory and other functions, so novices can quickly get started.

• Embroidery quality assurance: Driven by high-precision stepper motor, the embroidery frame moves smoothly and the stitches are uniform and tight. With automatic thread cutting, presser foot lifting and other devices, it reduces manual intervention and improves embroidery efficiency and finished product quality.

Application fields

• Garment industry: Used for logo embroidery and personalized pattern customization of T-shirts, shirts, jackets and other ready-to-wear garments to meet the production needs of small batches and multiple styles.

• Hat industry processing: For baseball caps, golf caps and other hat products, to achieve precise embroidery of the front piece, tongue, side of the hat and other parts.

• Gift customization: Personalized elements such as names and blessings can be embroidered on scarves, backpacks, handkerchiefs and other gifts to enhance the added value of products.

With its versatility, flexibility and high cost performance, the single-head flat embroidery garment show hat embroidery machine has become an ideal choice for small and medium-sized embroidery enterprises and the customized market, helping users quickly respond to market demand and enhance product competitiveness.
